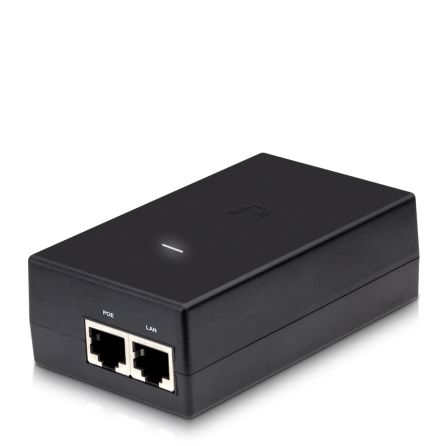

Poe Adapter
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision®
* Check product speci cations to verify PoE compatibility.
Ubiquiti PoE Adapter Compatibility with the airGatewayTM
Speci c PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway is available in three models:
• airGateway Standard model with an internal antenna
• airGateway Pro Dual-Band Wi-Fi model with an internal antenna
• airGateway-LR Long-range Wi-Fi model with an external antenna for extended range
The airGateway plugs into any of these PoE Adapters:
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge • Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Specifications
• Dimensions 101 x 60 x 33 mm (3.98 x 2.36 x 1.30")
• Weight 192 g (6.77 oz)
• Output Voltage 50VDC @ 1.2A
• LAN Activity Indicator no
• Gigabit LAN Port yes
• Remote Reset Capability no
• Reset Button Input Voltage no
• Input Voltage 90-260VAC @ 47-63 Hz
• Input Current 1.3A @ 120VAC, 0.75A @ 230VAC
• Inrush Current <100A Peak @120VAC, <200A Peak @ 230VAC
• Efciency 85+%
• Output Ripple 1% Max.
• Switching Frequency 65 kHz
• Line Regulation ± 1%
• Load Regulation ± 3%
• 2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
• 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
• Operating Temperature 0 to 40°C (32 to 104°F)
• Storage Temperature -30 to 70°C (-22 to 158° F)
• Operating Humidity 35 to 95% Noncondensing
• AC Connector IEC-320 C6
• Data IN / POE RJ45 Shielded Socket
• Surge Protection Difference and Common Mode
• Clamping Protection 11V Data, 60V Power
• Max. Surge Discharge 1500A (8/20 μs) Power
• Peak Pulse Current 36A (10/1000 μs) Data
• Shunt Capacitance <5 pf data
• Response Time <1 ns
• Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B
• AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico
