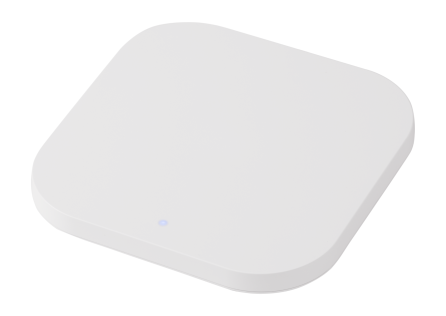

Plasma Cloud PAX1800 Access Point 2.4 / 5GHz 802.11ax WiFi

Plasma Cloud’s WiFi 6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. It shines in high density and high throughput demand scenarios as well, such as in schools, universities, airports and shopping malls.

Power over Ethernet (PoE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

Ethernet Ports

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determining whether a port should be uplink or provide LAN access.

Mounting Options

Regardless where to place the Access Points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options got you covered for every scenario.

Specifications:

• Radio Chains / Streams 2.4 GHz : 2x2 / 5 GHz : 2x2

• Antennas 2.4 GHz : 5.0 dBi / 5 GHz : 5.0 dBi

• Data Rates 573 Mbps + 1201 Mbps

• 2.4 GHz 2 stream, 802.11 b/g/n/ax (max rate: 574 Mbps), MU-MIMO/OFDMA

• 5 GHz 2 stream, 802.11 a/n/ac/ax (max rate: 1201 Mbps), MU-MIMO/OFDMA

• Processor Qualcomm Cypress IPQ6000

• Memory 256 MB DRAM DDR3

• 64 MB NOR Flash

• Watchdog Timer Microchip PIC10F200T-I/OT

• Physical Interface 2x 1000 Mbps Ethernet ports

• PoE 802.3at

• DC Jack 12V / 2A

• Power Consumption Min : 5W (PoE), 3.5W (DC) / Max : 13W

• Max Recommended Clients 100-110 per AP

• Indoor/Outdoor Rating

• CE marked for indoor/outdoor use, IP55

• Dimension (W x D x H) 180 x 180 x 37 mm

• Weight 500 g

• Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

• Certifications CE, FCC, IC, RCM
