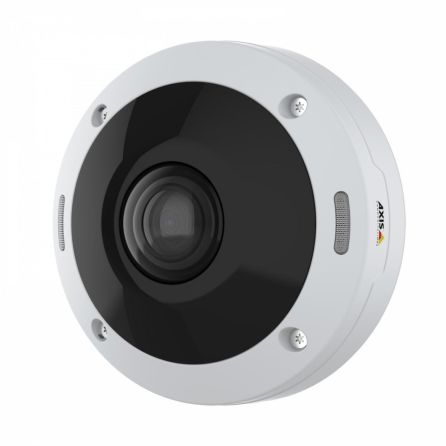

Axis 02100-001 M4308-PLE Camera IP Panoramic 12MP 1.3mm Lens IP67 IK10 Mic

This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.

Extended possibilities

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.

Sharp images and audio

Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera’s peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you’ll be sure to record everything with no blind spots.

Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

Specifications:

Camera

• Image sensor: CMOS

• Image sensor size: 1/1.7"

• Lightfinder: Lightfinder

• Wide dynamic range: Forensic WDR

• Min illumination/ light sensitivity (Color): 0.19 lux

• Min illumination/ light sensitivity (B/W): 0.04 lux

Video

• Max video resolution: 2880x2880

• Max frames per second: 25/30

• Day and Night functionality: Yes

• Electronic image stabilization: –

Lens

• Focal length: 1.3 mm

• Horizontal field of view: 183 °

• Vertical field of view: 183 °

Compression

• Zipstream: Yes

• H.264: Baseline, High, Main

• H.265: Yes

• Motion JPEG: Yes

Audio

• Audio Support: Yes

Security

• Signed firmware: Yes

• Secure boot: Yes

General

• Remote focus: –

• Remote zoom: –

• Built-in IR: Yes

• OptimizedIR: Yes

• Local storage (memory card slot): Yes

• Operating temperature: -40 to 50 °C

• Outdoor Ready: Yes

• Vandal rating: IK10 (IR window IK09)

• IP rating: IP66

• Sustainability: PVC free
