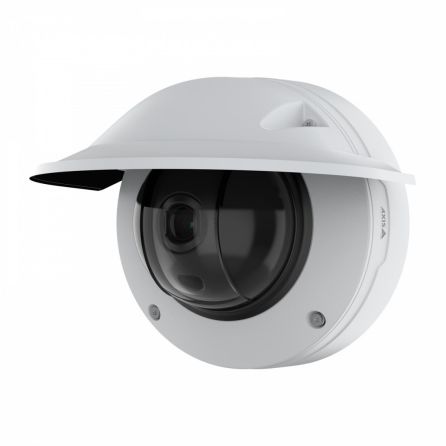

AXIS 02054-001 Q3536-LVE Camera IP Dome 4MP 9mm Lens IP66 IK10

Built on ARTPEC-8, AXIS Q3536-LVE offers advanced features and powerful applications based on deep learning. This robust camera can withstand the harshest weather conditions and the most powerful impacts.

Outstanding image quality

AXIS Q3536-LVE offers outstanding image quality and forensic details in 4 MP resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.

Powerful analytics capabilities

Built on ARTPEC-8, this high-performance camera offers advanced analytics based on deep learning on the edge. Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before — on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

Robust and secure—inside and out

Enclosed in a metal casing, this robust, IK10+-rated outdoor-ready camera is protected against redirection, defocusing, and impacts. It can withstand temperatures as low as -50 °C and as high as 60 °C (-58 ºF to 140 ºF). Including sensors for intrusion and shock detection it’s also packed with built-in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system. This top-of-the-line camera offers easy installation, maintenance, and operation as well as flexible cable management. It includes a built-in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there's a power outage, redundant power helps ensure a reliable power supply to safeguard the system.

Specifications:

Camera

• Lightfinder: Lightfinder 2.0

• Min illumination/ light sensitivity (Color) *: 0.06 / 0.08 lux

• Image sensor: CMOS

• Image sensor size: 1/1.8"

• Wide dynamic range: Forensic WDR

• Min illumination/ light sensitivity (B/W): 0 lux

Video

• Max video resolution: 2688x1512

• Max frames per second: 50/60

• Day and Night functionality: Yes

• Electronic image stabilization: Yes

Lens

• Focal length *: 4.3 - 8.6 / 11.3 - 29.4 mm

• Horizontal field of view *: 103 - 52 / 14.9 - 40.8 °

• Vertical field of view *: 56.2 - 29.6 / 22.4-8.5 °

Pan, Tilt, Zoom

• Remote PTRZ: –

Compression

• Zipstream:  Yes

• H.264: Baseline, High, Main

• H.265: Yes

• Motion JPEG: Yes

Audio

• Audio Support: Yes

• Built-in microphone: –

Network

• PoE Class: 4

Security

• Signed firmware: Yes

• Secure boot: Yes

• Axis Edge Vault: Yes

General

• Remote focus: Yes

• Remote zoom: Yes

• Built-in IR: Yes

• Local storage (memory card slot): Yes

• Operating temperature: -50 to 55 °C

• Outdoor Ready: Yes

• Vandal rating: IK10+

• IP rating: IP66, IP6K9K

• Designed for repaint: Yes

• Sustainability: PVC free
