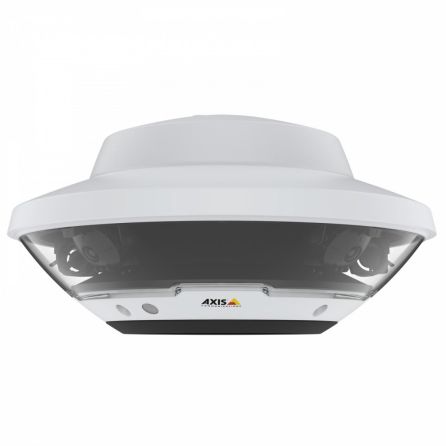

Axis 01711-001 Q6100-E Camera IP 360 5MP (3K) 2.8mm Lens IP67

AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360° overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.

Total situational awareness- 24/7

Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.

Great images to cover your areas of interest

AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Easy, cost-efficient installation

Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.

Specifications:

Camera

• Min illumination/ light sensitivity (Color): 0.4 lux

• Min illumination/ light sensitivity (B/W): 0.03 lux

• Image sensor: CMOS

• Image sensor size: 1/2.5"

• Lightfinder: –

• Wide dynamic range: WDR

General

• Built-in IR: –

• OptimizedIR: –

• Local storage (memory card slot): Yes

• Operating temperature: -50 to 50 °C

• Outdoor Ready: Yes

• Vandal rating: IK10

• IP rating: IP66

• Designed for repaint: Yes

Analytics

• Autotracking version: –

• Orientation aid: –

Video

• Max video resolution: 2592x1944

• Max frames per second: 20

• Day and Night functionality: Yes

• Electronic image stabilization: –

Lens

• Focal length: 2.8 mm

• Horizontal field of view: 360 °

• Vertical field of view: 84 °

Pan, Tilt, Zoom

• Pan range: –

• Tilt range: –

• Guard tour: –

• Optical zoom: –

• Digital zoom: –

Compression

• Zipstream: Yes

• H.264: High, Main

• H.265: Yes

• Motion JPEG: –

Audio

• Audio Support: Yes

• Built-in microphone: –

System Integration

• Audio detection: –

• Active tampering: Yes

• Alarm inputs/outputs: –

Network

• PoE Class: High PoE

Security

• Signed firmware: –

• Secure boot: –

• TPM: –
