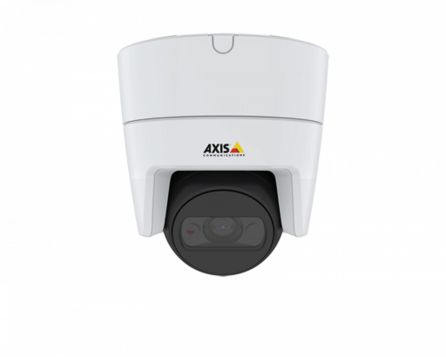

Axis 01605-001 M3116-LVE Camera IP 4MP 2.4 mm Lens IP67 IK08

AXIS M3116-LVE is an affordable, flat-faced dome that offers 4 MP video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It’s ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.

Smooth, sharp video

AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It’s perfect for monitoring inside and outside of various premises where there’s often poor light conditions.

Light up the night

This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you’ll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there’s no need for extra lighting- you get unobtrusive surveillance both day and night.

Fits in anywhere

AXIS M3116-LVE offers flexible and reliable installation. It’s suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings.

It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.

Specifications:

Camera

• Image sensor: CMOS

• Image sensor size: 1/2.7"

• Lightfinder: Lightfinder

• Wide dynamic range: Forensic WDR

• Min illumination/ light sensitivity (Color): 0.19 lux

• Min illumination/ light sensitivity (B/W): 0.04 lux

Video

• Max video resolution: 2688x1512

• Max frames per second: 25/30

• Day and Night functionality: Yes

• Electronic image stabilization: –

Lens

• Focal length: 2.4 mm

• Horizontal field of view: 130 °

• Vertical field of view: 72 °

Pan, Tilt, Zoom

• Remote PTRZ: –

Compression

• Zipstream: Yes

• H.264: Baseline, High, Main

• H.265: Yes

• Motion JPEG: Yes

Audio

• Audio Support: Yes

• Built-in microphone: –

Network

• PoE Class: 3

Security

• Signed firmware: Yes

• Secure boot: Yes

• Axis Edge Vault: –

General

• Remote focus: –

• Remote zoom: –

• Built-in IR: Yes

• Local storage (memory card slot): Yes

• Operating temperature: -30 to 50 °C

• Outdoor Ready: Yes

• Vandal rating: IK08

• IP rating: IP66, IP67

• Designed for repaint: Yes

• Sustainability: PVC free
